Status Section ​

Miner Status Subsection ​

This subsection contains current information about the device's operation. The following are also available here:

Whatsminer Miner Status: Mining, with the Restart Miner, Download Logs and Toggle Led buttons

  • Restart Miner button — restarts the mining process without rebooting the device itself.
  • Download Logs button — downloads logs from the device (similar to the Export log function in Whatsminer Tool).
  • Toggle Led button — turns on the LEDs on the device's control board. Useful for locating a specific device in a farm.

Summary ​

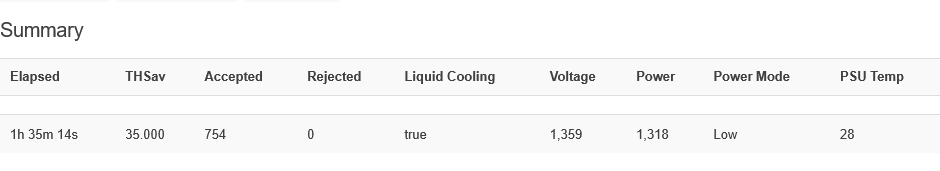

Whatsminer Summary: elapsed time, THSav, accepted/rejected shares, Liquid Cooling, voltage, power, power mode, PSU temp

Devices ​

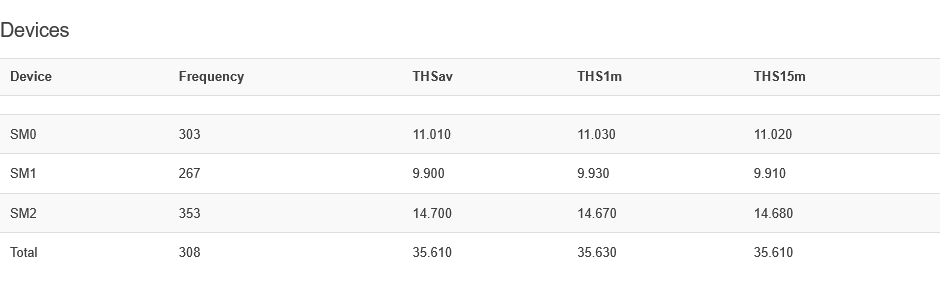

Whatsminer Devices table: frequency and THSav, THS1m, THS15m hashrate for hashboards SM0–SM2 and the total

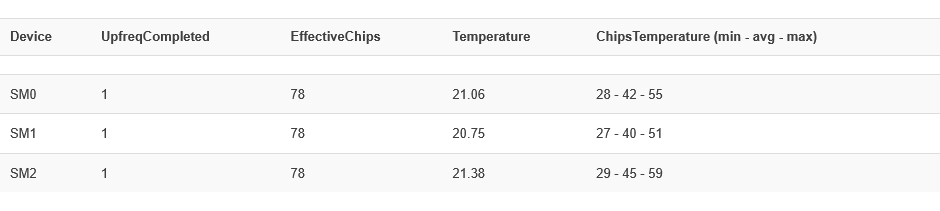

Whatsminer Devices details: UpfreqCompleted, EffectiveChips, board temperature and chip temps (min-avg-max) for SM0–SM2

Pools ​

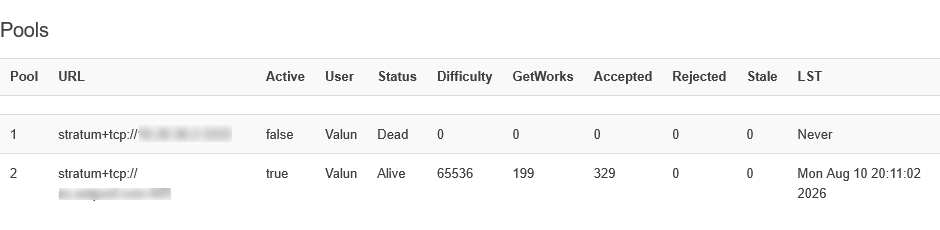

Whatsminer Pools table: URL, active flag, user, Alive/Dead status, difficulty, accepted, rejected and stale shares

Errors ​

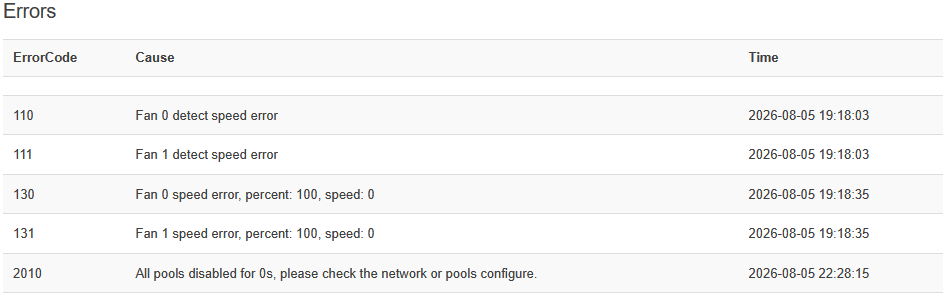

Whatsminer Errors table: fan speed errors 110, 111, 130, 131 and 2010 all pools disabled, with timestamps

Events ​

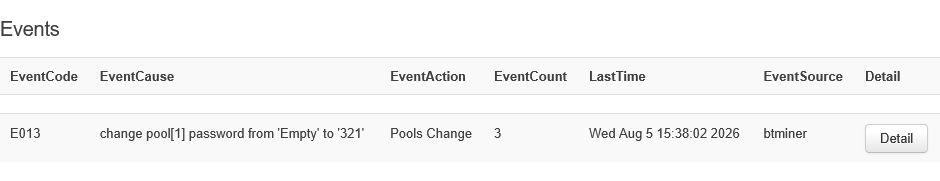

Whatsminer Events table: E013 pool password change, Pools Change action, count, last time, source btminer

Miner API Log, System Log, Miner Log, Processes Subsections ​

These subsections contain logs of various types. Here you can view them without downloading:

  • Miner API Log — log with detailed information about each board and the chips on them.
  • System Log — the current system log of the device, describing the main events of the device firmware.
  • Miner Log — allows you to view the pool change history (Pools Change Log) and device performance metrics over time intervals (Miner State Log).
  • Processes — allows you to monitor the processes running on the device and their parameters, as well as the current CPU load and memory usage for each process.

Overview Subsection ​

System ​

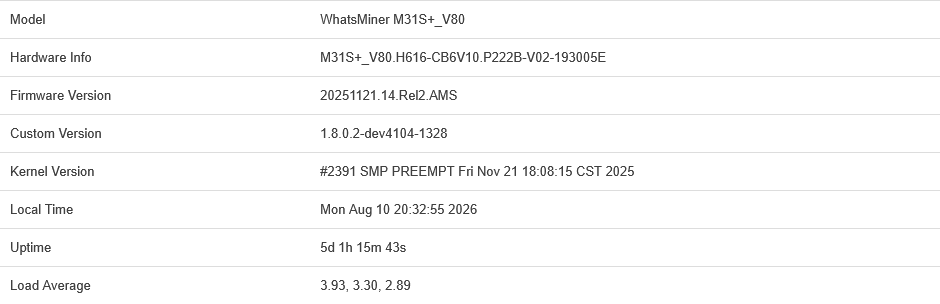

Whatsminer Overview, System: model M31S+_V80, H616 hardware info, firmware and custom version, kernel, uptime, load

Memory ​

Whatsminer Overview, Memory: total available, free and buffered RAM in kB with usage percentage

Network ​

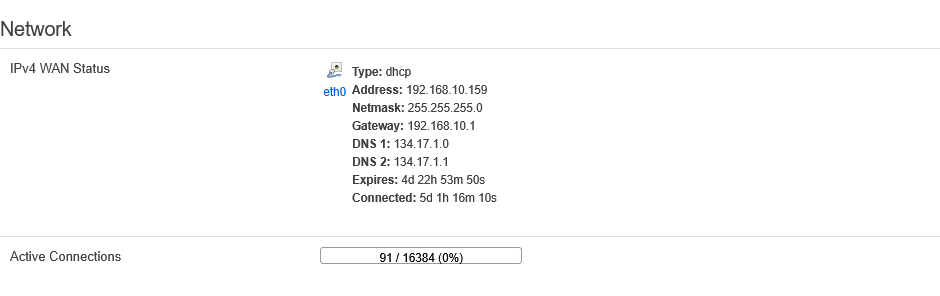

Whatsminer Overview, Network: IPv4 WAN status via DHCP with address, netmask, gateway, DNS and active connections
